Track anything. Ultra accurate.

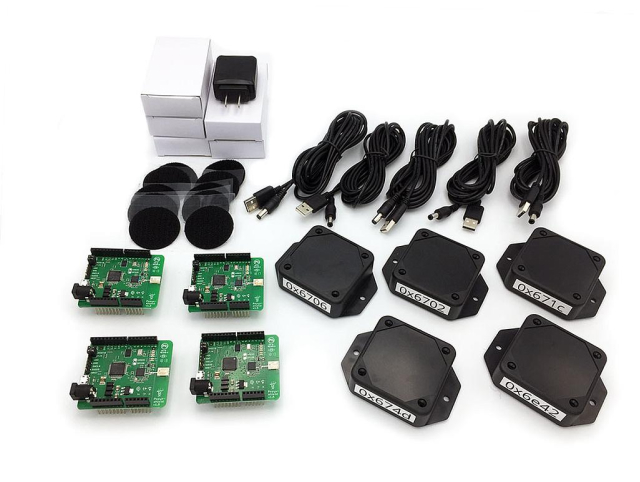

The Creator Kit contains a complete UWB kit with software, MQTT API, an Arduino library and Python library. The kit works standalone and is also compatible with Raspberry Pi and Arduino Uno.
Get accurate XYZ coordinates and IMU sensor information right out of the box and boost your RTLS UWB proto or test projects!

Get your starter kit
OVER 4,000 CREATOR kitS sold WORLDWIDE

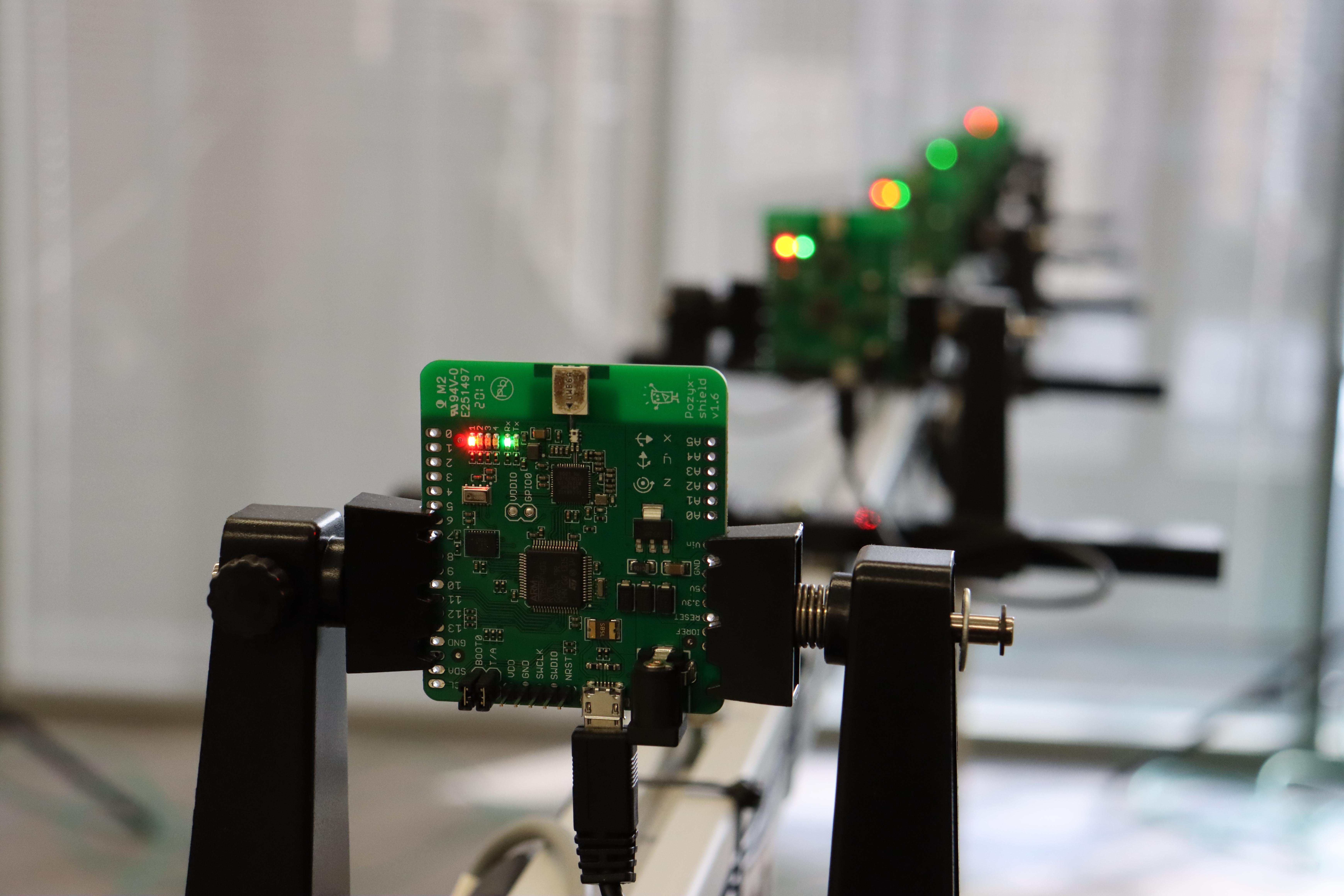

Developer tags setup in testing environment

OUR SOLUTION

Boost prototype or test projects

The Creator products are designed for small-scale applications. Hobby projects, rapid prototypes and proof of concepts... the Creator kit can handle it.

  • Highly configurable anchors and tags

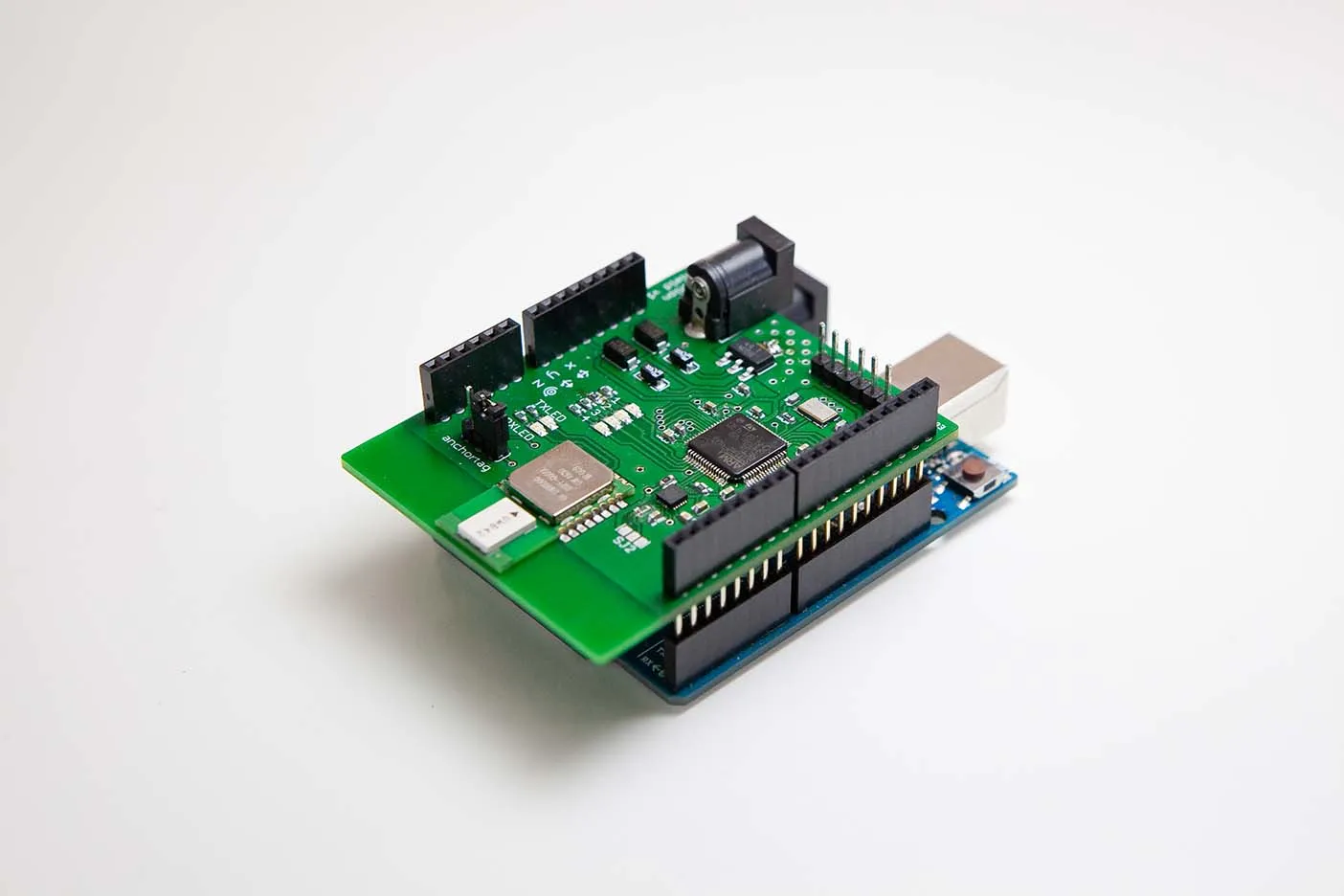

  • Fully compatible with Arduino and Raspberry Pi
  • Hardware can be deployed as a stand-alone solution

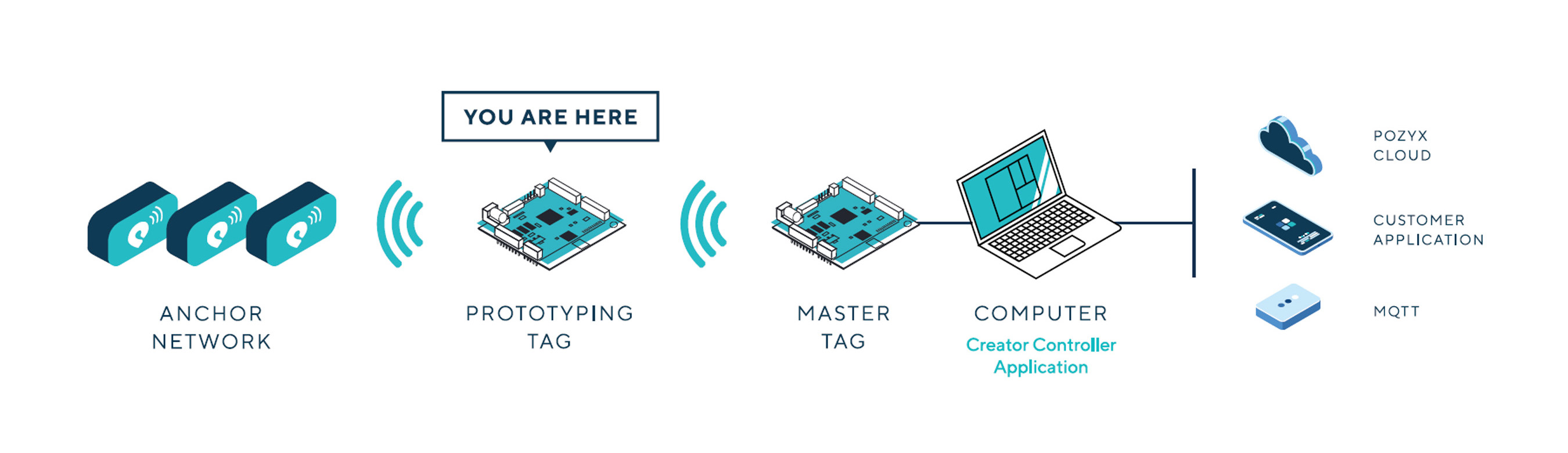

How it works

The Creator products are tag-centric. This means that the tag delivers its positioning by communicating with the available anchors. The anchors simply respond to the tag(s).
With at least 4 anchors in range, the tag can compute its position after ranging with each anchor. One anchor can be configured as the master-tag expanding the system and providing multi-tag support. The kit also contains the web-based Companion software.

The different parts of Pozyx's creator productsGet your starter kitCreator documentation

Technical
Specifications

With at least 4 anchors in range, the tag can compute its position after ranging with each anchor. An anchor can be configured as a master-tag expanding the system and providing multi-tag support, but there is a hard cap on how many anchors can be positioned reliably using this method.

  • Performs real-time 2D or 3D positioning using ultra-wideband TWR
  • Highly configurable anchors and tags
  • Performs wireless communication between devices
  • Support update rates up to 125Hz (single tag)
  • Support up to 8 wireless anchors within range

Get your starter kit now

The starter kit is ideal to get started on your hobby project and test out the Pozyx RTLS product.

More info in the Pozyx store
Pozyx creator starter kit

Is the Creator the right choice for your UWB project?

The creator kit is ideal for small hobby projects and provide quick validation and simple proof of concept. The enterprise kit is more suited for larger projects with a permanent aspect.

Enterprise Kit

Creator Kit

KEY FEATURES

Typical use case

Large projects with a permanent aspect or very demanding requirements around performance

Small hobby projects
A quick technology validation
A simple proof of concept

Maximum area size

Unlimited

1000 m2

Maximum number of anchors

Unlimited

8

Maximum number of tags

2000 per gateway (at 1 Hz)
Unlimited with multiple gateways

5

Maximum number of positions/s

2000 per gateway
Unlimited with multiple gateways

60

Supported positioning techniques

TDOA
TWR

TWR

Certified hardware

-

No

Anchors

Power supply

Daisy chained PoE+

Micro USB

Enclosure

IP20
IP67

IP20

Tags

Compatible tags

Wearable tag
Asset tag
Developer tag
Custom tag (OEM)

Developer tag

Software

Included

Real-time visualization
Setup planning
Setup validation
System monitoring

Real-time visualization

Optional packs

Analytics

None

Interfaces

MQTT API
HTTP API (limited)

MQTT API

KEY FEATURES

Typical use case

Large projects with a permanent aspect or very demanding requirements around performance

Maximum area size

Unlimited

Maximum number of anchors

Unlimited

Maximum number of tags

2000 per gateway (at 1 Hz)
Unlimited with multiple gateways

Maximum number of positions/s

2000 per gateway
Unlimited with multiple gateways

Supported positioning techniques

TDOA
TWR

Certified hardware

-

Anchors

Power supply

Daisy chained PoE+

Enclosure

IP20
IP67

Tags

Compatible tags

Wearable tag
Asset tag
Developer tag
Custom tag (OEM)

Software

Included

Real-time visualization
Setup planning
Setup validation
System monitoring

Optional packs

Analytics

Interfaces

MQTT API
HTTP API (limited)

KEY FEATURES

Typical use case

Small hobby projects
A quick technology validation
A simple proof of concept

Maximum area size

1000 m2

Maximum number of anchors

8

Maximum number of tags

5

Maximum number of positions/s

60

Supported positioning techniques

TWR

Certified hardware

No

Anchors

Power supply

Micro USB

Enclosure

IP20

Tags

Compatible tags

Developer tag

Software

Included

Real-time visualization

Optional packs

None

Interfaces

MQTT API
