Pozyx RTLS platform

The Pozyx real-time location system (RTLS) is built and designed with large, permanent and industrial deployments in mind. The Pozyx Enterprise system can position thousands of tags over large areas with 10 to 30 cm accuracy. The Enterprise hardware supports a wide range of settings that allow finetuning and custom optimisations. Update rate, operating range, battery life and additional sensor read-outs can all be adjusted to fit the application at hand.

Book a demo
The different steps in Pozyx indoor positioning
Person pointing at screen

SYSTEM ARCHITECTURE

#1 Enterprise system for all industries

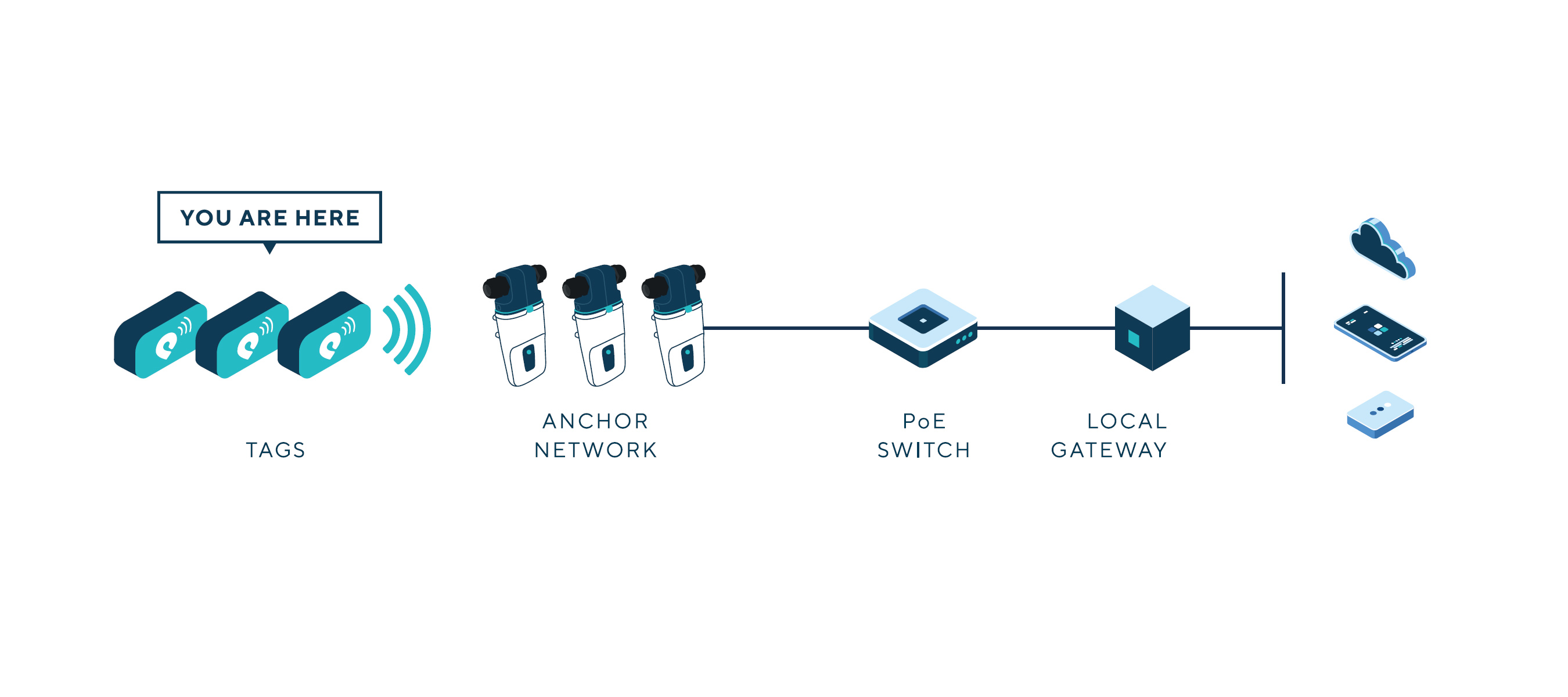

The Enterprise system utilizes a local processing server (called gateway) which connects to all Pozyx anchors over Ethernet. The gateway performs the wireless synchronization between the anchors, manages the scheduling and computes the position of all the tags. All data is made available from the gateway through the MQTT interface or through our open API.
The gateway also monitors the system and provides alerts when it is malfunctioning. Errors and warnings are pushed to our companion software which can be deployed in the cloud or locally on the gateway. The system supports TDOA-based positioning and is designed with small tags and long battery-life in mind. The tags simply have to transmit a short packet which can contain your custom data payloads. The complexity is therefore kept at the gateway and anchor level. This has additional benefits as it keeps the total cost of ownership within bounds.

Technical specifications

  • Accurately position tags within 10-30 cm
  • Supports variable update rates up to 75Hz and more
  • Can provide up to 1000 position updates per second (server limitations apply)
  • Performs real-time TDOA positioning
  • Supports low-power tags (TDOA) with years of battery life
  • Can handle up to 264 anchors per server
  • Up to 8 anchors can be connected in a chain with PoE+
  • Supports rapid integration with other software through MQTT
  • Is compatible with the web-based companion software for fast deployment and maintenance
  • Can be time-synchronized through NTP

See how it works

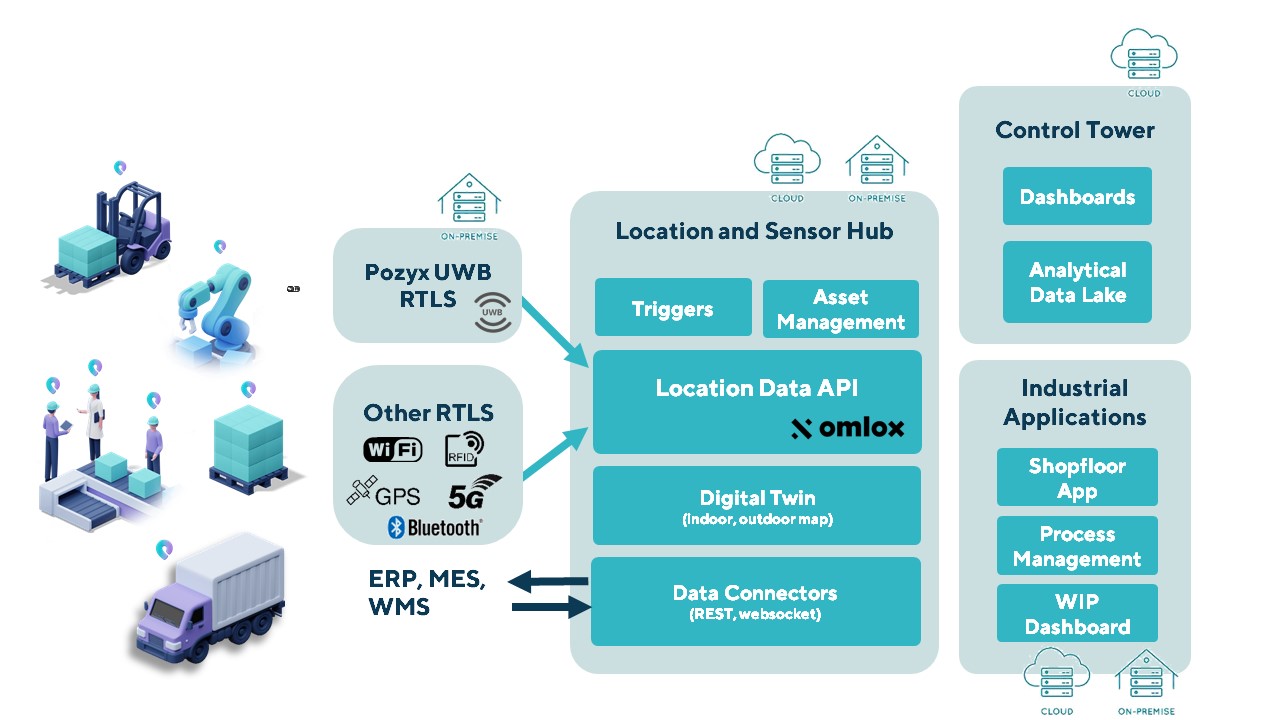

The Pozyx RTLS platform turns accurate real-time location data into valuable insights.

  • Easy to set up
  • Easy to maintain
  • Scalable to any scope


Pozyx Enterprise Kits

The Enterprise kits are the ultimate UWB RTLS validation packages. They contain everything you need to be up and running with your indoor positioning system in record time.

Pozyx Enterprise Kit with anchors, different tags, and gateway

Enterprise Kit

The go-to solution for your enterprise grade indoor positioning needs. Scalable to unlimited area sizes.

  • 3 x Industrial tag
  • 3 x Wearable tag - Interactive edition
  • 6 x Enterprise anchor
  • 1 x Gateway
Pozyx Enterprise Kit Lite with anchors, different tags and gateway lite

Enterprise Kit Lite

The go-to solution for Enterprise RTLS validation projects.

  • 2 x Industrial tag
  • 2 x Wearable tag - Interactive edition
  • 4 x Enterprise anchor
  • 1 x Lite Gateway
