Pozyx Anchors

Anchors are the cornerstone of successful positioning. They capture signals, process data, and make it available on the central positioning engine. To get precise and robust data, the Pozyx anchors have been designed to perform and endure. Well-engineered hardware and optimized design guarantees superior UWB signal processing and reception. On top of that, the anchors work well in a variety of environments and are easy to install.
Discover how the Pozyx anchors get you there.

Robust anchors for RTLS infrastructure backbone

Anchors create the base of the infrastructure of the Pozyx RTLS. They provide robust UWB positioning for both small or large surface projects and scale with the needs of a growing project to support even the largest permanent installations to track thousands of assets. Anchors are easy to install and built to perform in the toughest and most challenging environments in industrial and agricultural indoor applications.

The Pozyx Anchors come in a standard version with IP20 housing and an industrial version with robust IP66/67 enclosure.

Pozyx anchors are the bedrock of every successful RTLS project.

Contact us

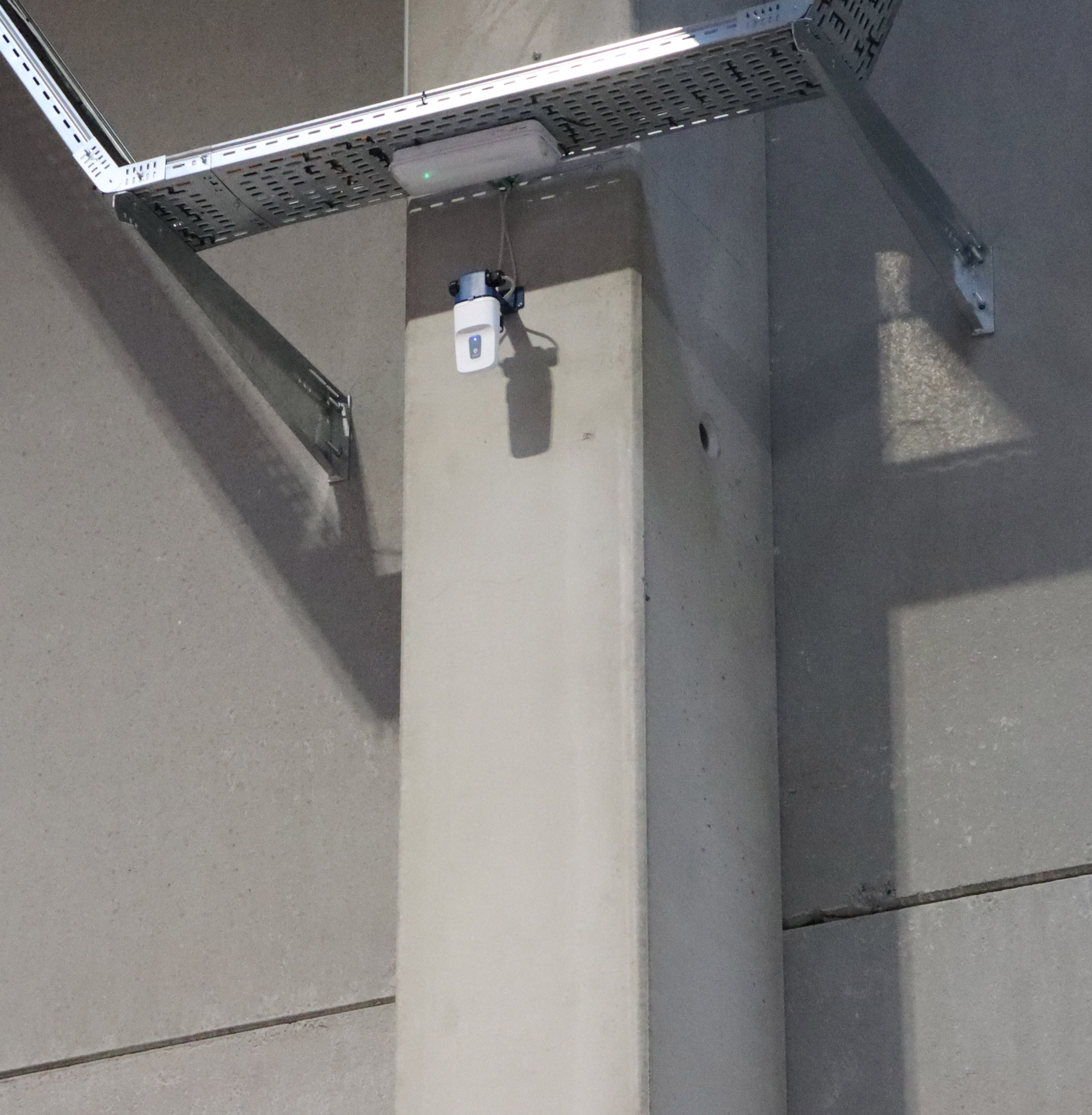

A Pozyx Enterprise anchor on the ceiling of a warehouse
1

Built to last

Use anchors that are tested in tough environments, rain or shine. Pozyx Enterprise Anchors come in IP20 or IP66/67 versions to guarantee performance under all circumstances.

2

Easy to install

VESA mount options give you flexibility to quickly place anchors. Use your own mounts or choose from a range of dedicated Pozyx mounts. Plus, easily daisy-chain devices through PoE.

3

Think fast

Get accurate information with support for two protocols (TDOA & TWR) and smart Pozyx algorithms. These make the system highly scalable. Plus, get even more info thanks to built-in sensors for acceleration, air pressure & temperature.

Tough, flexible & smart
Pozyx anchors

Pozyx has 2 types of anchors, perfect for every RTLS need.

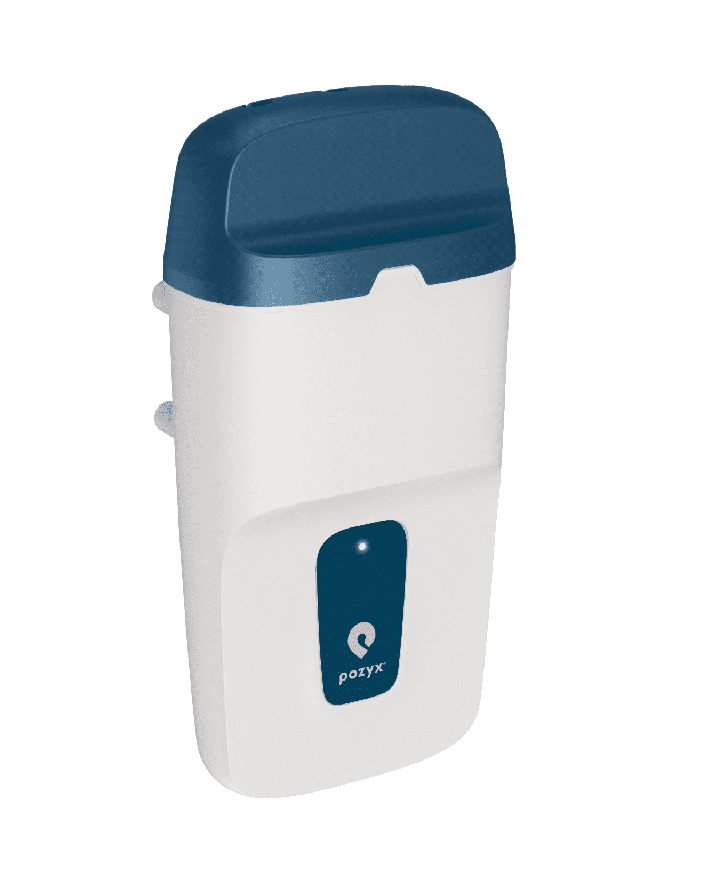

Enterprise Anchor

Cover your indoor RTLS surface with the Pozyx anchors. Robust and scalable for large projects. Easy to install and built to perform.

Contact us

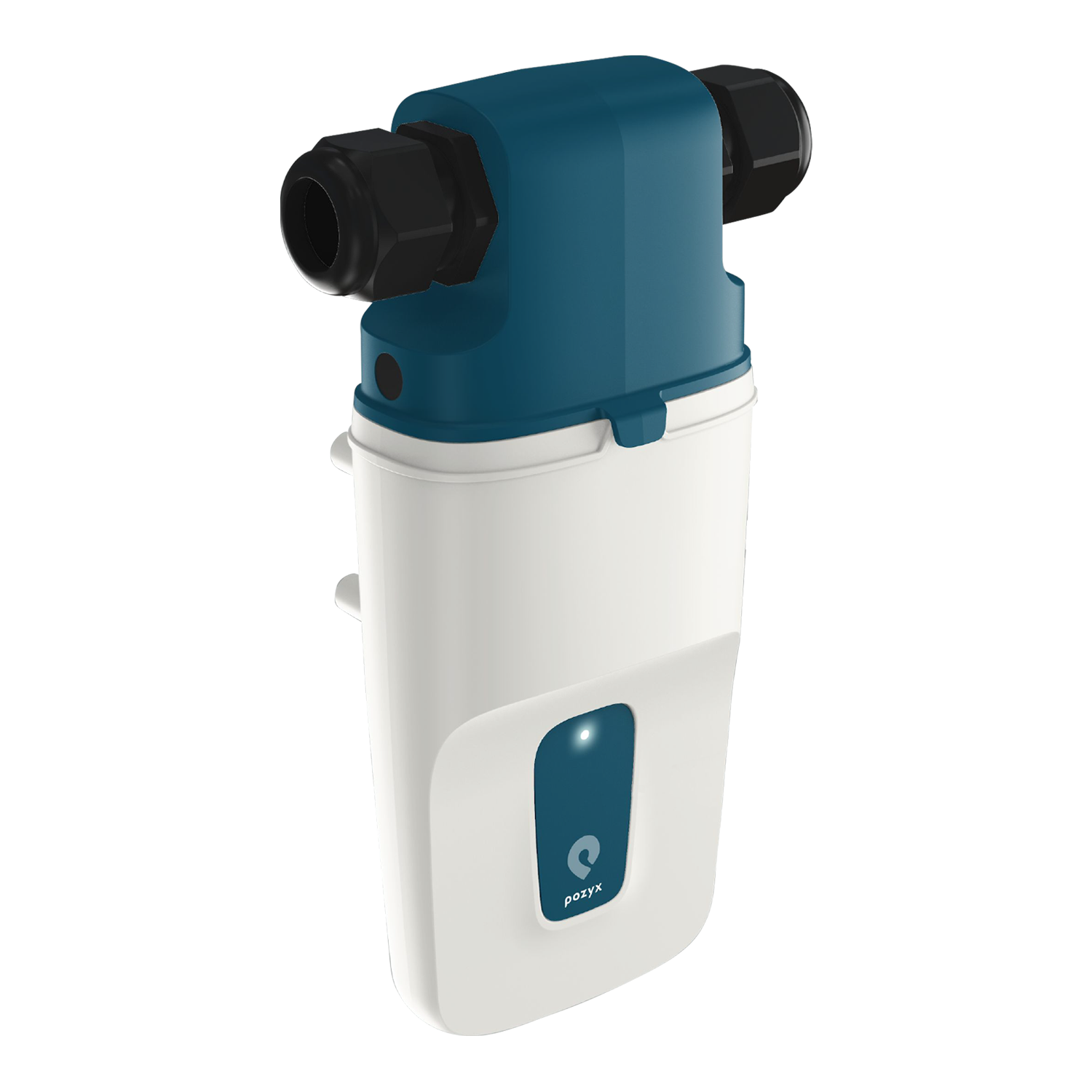

Industrial Enterprise Anchor

Pozyx industrial grade anchor with IP66/67 enclosure to resist water, chemicals or cleaning detergents.

Contact us

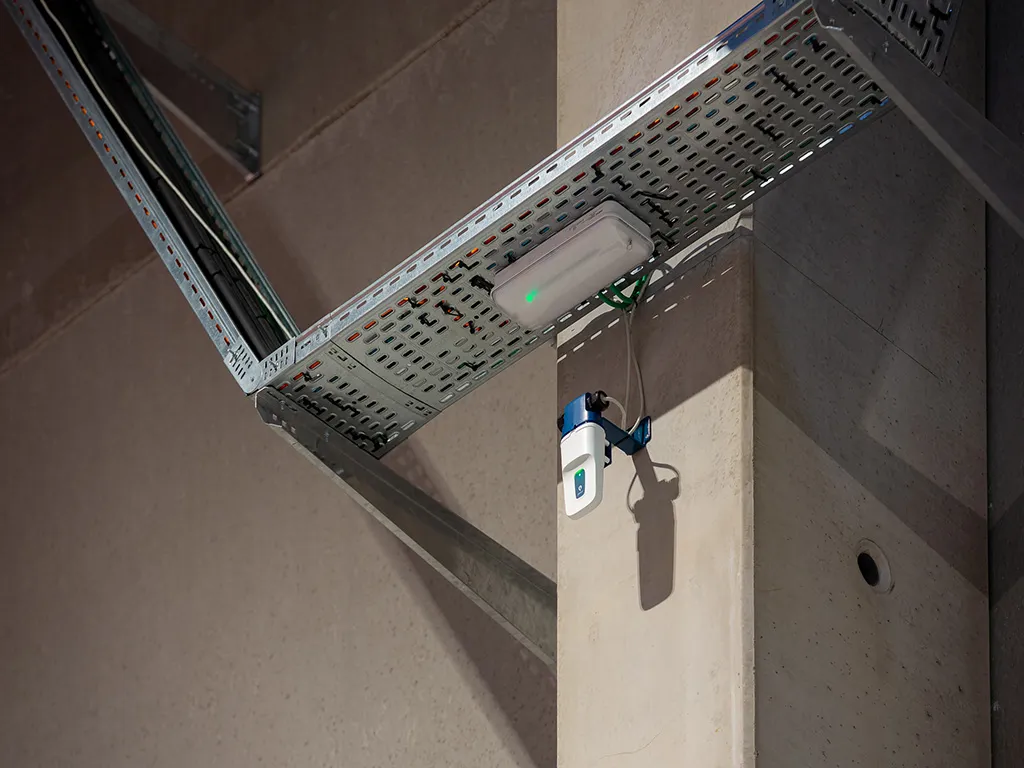

Anchor on wall in food industry environment

Properties

Robust casing options

IP20 weatherproof
IP66/67 industry grade

Secured firmware

Backup in non-volatile memory
Upgradeable over Ethernet

Positioning techniques

TDOA Time Difference of Arrival
TWR Two Way Ranging

On-board sensors

Acceleration
Air pressure
Temperature (for diagnostic purposes)

Easy planning

RTLS Planning Suite for anchor planning & network planning

Features

  • Quasi omni-directional ultra-wide band receiver
  • Ultra-wide band range extension
  • Processes up to 4000 ultra-wideband frames per second
  • Support for both TWR and TDOA positioning
  • Powered by Power-over-Ethernet (PoE+) or local AC/DC convertor
  • Supports daisy chaining of up to 4 anchors
  • IP20 or IP66/67 enclosure options
  • Firmware upgradeable over Ethernet
  • Backup firmware recovery
  • SNMP support for device diagnostics
  • Certifications: CE, FCC, ISED, UKCA, SRRC - See all certified countries
Dimensions
Size - with IP20 header

158 x 98 x 53 mm

Size - with IP66/67 header
229 x 98 x 59 mm
Weight - with IP20 header
170 g
Weight - with IP66/67 header
270 g

Start small. Think big.

Enterprise Anchor
IP20

Enterprise Anchor IP20

Industrial Enterprise Anchor IP66/67

Industrial Enterprise Anchor IP66/67
KEY FEATURES

Typical use case

Help icon

Track anybody or anything in office environments or indoor events

Track operators or assets on production or assembly lines to optimize efficiency and streamline production flows in industrial environments

Mounting options

Pozyx VESA backplate
Pozyx VESA profile for ceiling mounting
Pozyx VESA profile for wall mounting

Pozyx VESA backplate
Pozyx VESA profile for ceiling mounting
Pozyx VESA profile for wall mounting

Compatible with

Enterprise

Enterprise

Technical SPECS

Power supply

Help icon

Enclosure

IP20

IP66/IP67

Dimensions

158 x 98 x 53 mm

229 x 98 x 59 mm

Weight

170 g

270 g

KEY FEATURES

Typical use case

Help icon

Track anything and anybody on the production floor or in any indoor environment, moving or static.

Design & options

Basic tag with wearing options
- Wristband
- Lanyard
- Belt clip-on

Compatible with

Enterprise

Technical Specs

Power supply

Help icon

Enclosure

IP20

Dimensions

158 × 98 × 53 mm

Weight

170 g

Download Product sheet
KEY FEATURES

Typical use case

Help icon

Track people in any indoor environment, ideal for workforce management, time registration, efficiency optimization and access control.

Design & options

Multi-colored LED
Programmable button
Interactive tag with wearing options
- Wristband
- Lanyard
- Belt clip-on

Compatible with

Enterprise

Technical Specs

Power supply

Help icon

Enclosure

IP66/67

Dimensions

229 x 98 x 59 mm

Weight

270g

Download Product sheet

Accessories

A selection of our products that can improve your experience.
Contact us for more info on these accessories.



Discovery & Value Assessment

The Pozyx system collects location data and the Pozyx solution offers valuable insights to bring increased efficiency to the floor. Indeed, the real value is in the data.
Pozyx offers a two-step solution validation project to guarantee asuccessful outcome and quick ROI.
In the first step, the Pozyx experts will come on-site to assess the use case.
What are the problems Pozyx can solve? How can we share our expertise?
What is the added value? What ROI can be expected?
In the second step, we will offer a tailor-made validation package to secure the POC.

An enterprise kit with anchors, industrial tag, wearable tag and gateway

Value Assessment Discovery

Operational expertise - free of charge, no obligations
  • Initial discovery call to discuss the use case
  • On-site visit and process review by Pozyx operational efficiency experts
  • Use case mapping and budget/effort/result matrix
  • Initial solution proposal, including budget & ROI calculation
  • Free of charge, zero commitments, no obligations

Enterprise kit lite with anchors, tags, and gateway lite

Value Assessment Validation Package

The go-to solution for validation projects.
  • Tailor-made POC Assessment Package
  • Includes everything needed to evaluate the solution and validate the use case
  • Hardware, software & installation material
    + analytics, report and dashboard templates
  • Scalable from small projects to unlimited area sizes
  • Worry-free set-up, expertise, installation & validation included
