Hardware ANCHORS

Enterprise Anchors

Pozyx Enterprise Anchors deliver the most robust and scalable UWB positioning solution for any RTLS project, and cover both small or large surfaces. They are easy to install and built to perform in tough environments. Plus, they scale easily to work on demanding permanent installations to track thousands of tags.

The Pozyx anchors come in a standard version with IP20 housing and industrial version with robust IP66/IP67 enclosure.

Pozyx anchors, the backbone of successful RTLS solutions.

Enterprise anchor IP66/67
1

Works in demanding environments and in industrial facilities


2

Robust, tracks thousands of moving or static tags in real-time


3

Highly scalable, can be extended to cover any size area

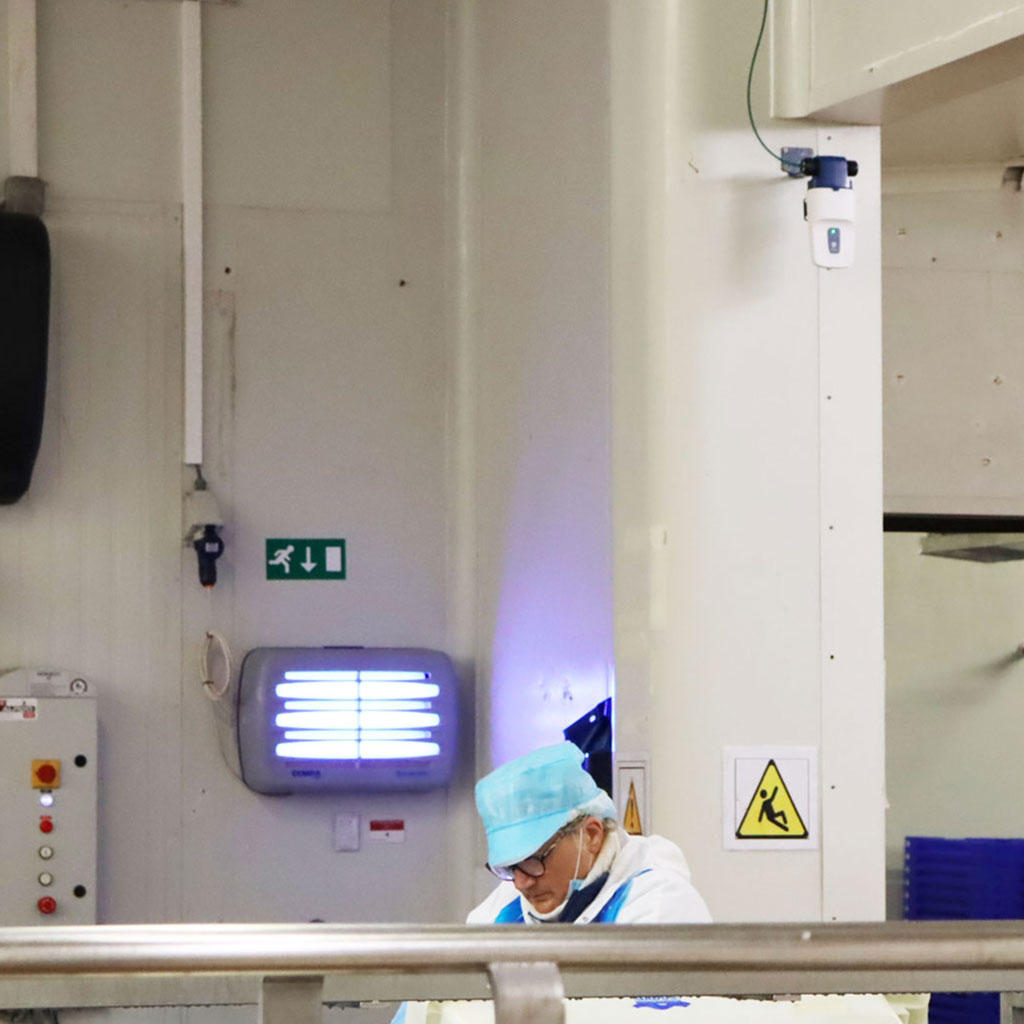

Anchor on wall in food industry environment

Properties

Robust casing options

IP20 weatherproof
IP66/67 industry grade

Secured firmware

Backup in non-volatile memory
Upgradeable over Ethernet

Positioning techniques

TDOA Time Difference of Arrival
TWR Two Way Ranging

Onboard sensors

Acceleration
Air pressure
Temperature (for diagnostic purposes)

Features

  • Quasi omni-directional ultra-wide band receiver
  • Ultra-wide band range extension
  • Processes up to 4000 ultra-wideband frames per second
  • Support for both TWR and TDOA positioning
  • Powered by Power-over-Ethernet (PoE+) or local AC/DC convertor
  • Supports daisy chaining of up to 8 anchors
  • IP20 or IP66/67 enclosure options
  • Firmware upgradeable over Ethernet
  • Backup firmware recovery
  • SNMP support for device diagnostics
  • Pending Certifications: FCC Part 15.517 / ETSI EN 302 065-2 LT1/LT2
Dimensions
Size - with IP20 header

158 x 98 x 53 mm

Size - with IP66/67 header
229 x 98 x 59 mm
Weight - with IP20 header
170 g
Weight - with IP66/67 header
274 g
